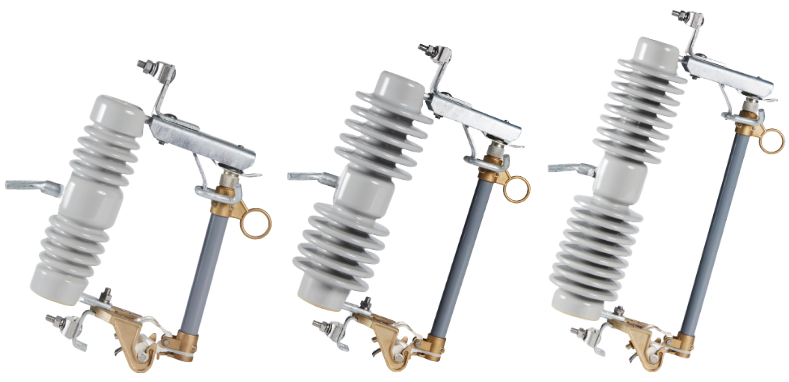

| 瓷套熔斷器主要技術參數 | |||||||
| 序號 | 規格型號 | 額定 電壓 kV | 額定 電流 A | 爬電距離 mm | 開斷電流 kA | 工頻耐受電壓 (對地/斷口) ≥kV | 雷電沖擊 耐受電壓 ≥kV |
| 1 | 15kV 100A | 15 | 100 | 220 | 5/6.3/8/10/12.5 | 42/48 | 95 |
| 2 | 24kV 100A | 24 | 100 | 280 | 5/6.3/8/10/12.5 | 50/60 | 125 |
| 3 | 24 | 100 | 320 | 5/6.3/8/10/12.5 | 50/65 | 150 | |
| 4 | 24 | 100 | 520 | 5/6.3/8/10/12.5 | 50/65 | 170 | |
| 5 | 36kV 100A | 36 | 100 | 660 | 5/6.3/8/10/12.5 | 70/80 | 170 |
| 6 | 36 | 100 | 720 | 5/6.3/8/10/12.5 | 95/110 | 200 | |
| 7 | 15kV 200A | 15 | 200 | 220 | 5/6.3/8/10/12.5 | 42/48 | 95 |
| 8 | 24kV 200A | 24 | 200 | 280 | 5/6.3/8/10/12.5 | 50/60 | 125 |
| 9 | 24 | 200 | 320 | 5/6.3/8/10/12.5 | 50/65 | 150 | |
| 10 | 24 | 200 | 520 | 5/6.3/8/10/12.5 | 50/65 | 170 | |
| 11 | 36kV 200A | 36 | 200 | 660 | 5/6.3/8/10/12.5 | 70/80 | 170 |
| 12 | 36 | 200 | 720 | 5/6.3/8/10/12.5 | 95/110 | 200 | |
| 13 | 24kV 100A (帶滅弧罩) | 24 | 100 | 280 | 5/6.3/8/10/12.5 | 50/65 | 125 |
| 14 | 24 | 100 | 320 | 5/6.3/8/10/12.5 | 50/65 | 150 | |
| 15 | 24 | 100 | 520 | 5/6.3/8/10/12.5 | 50/65 | 170 | |
